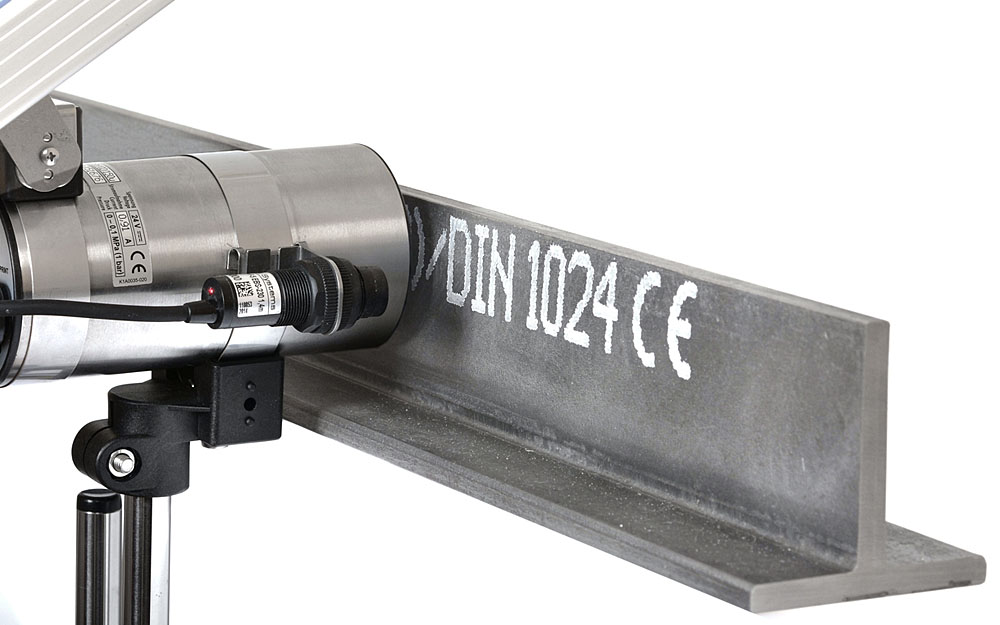

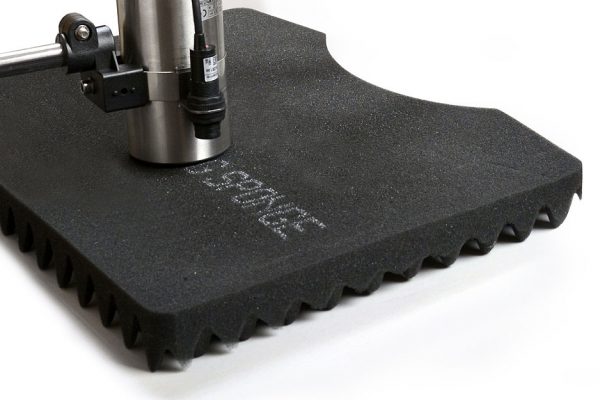

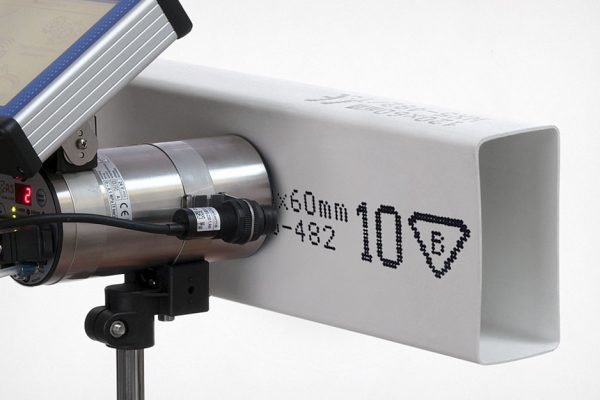

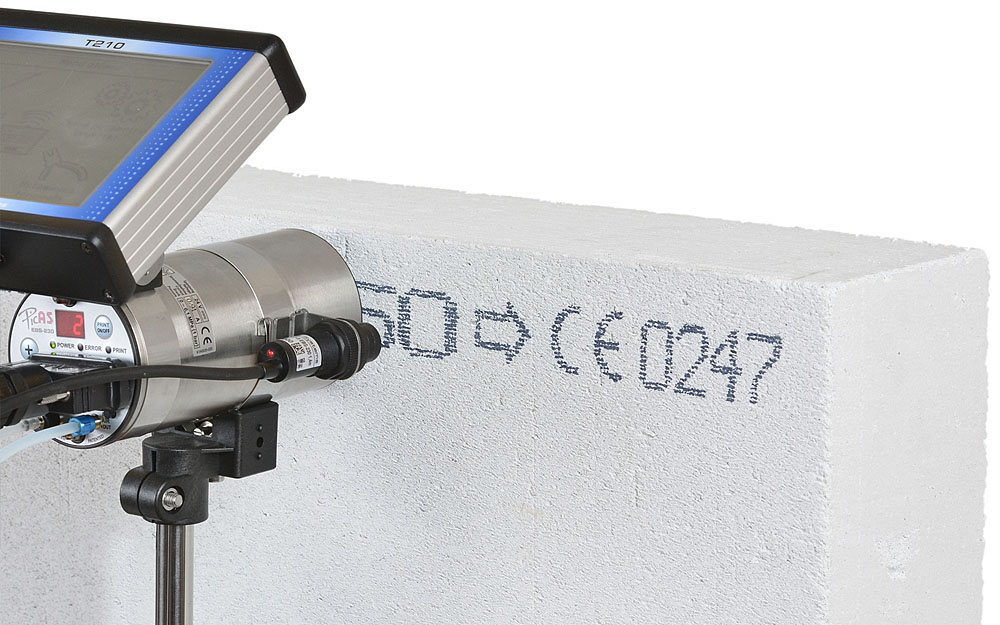

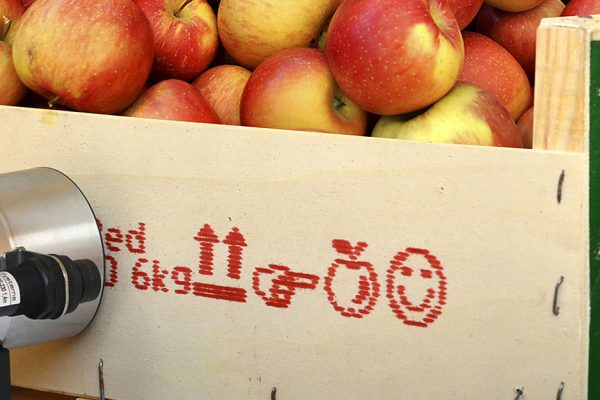

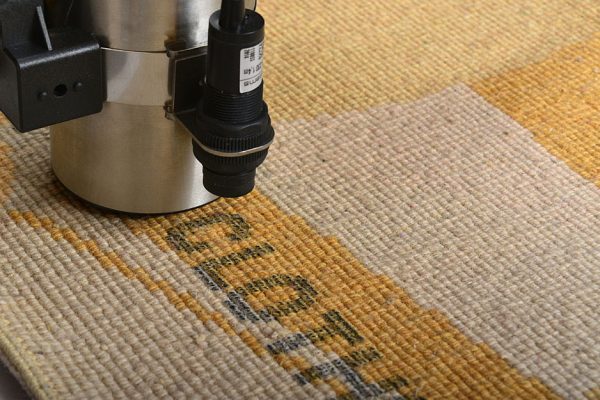

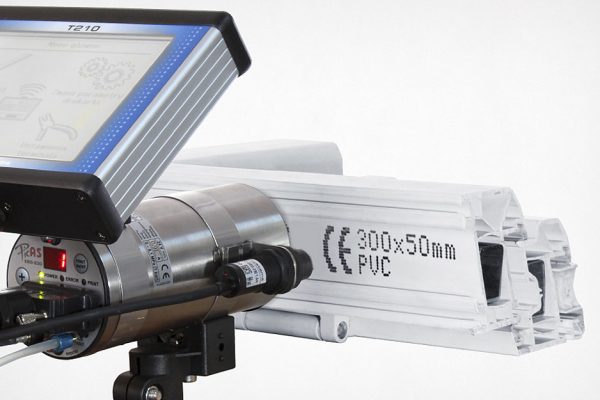

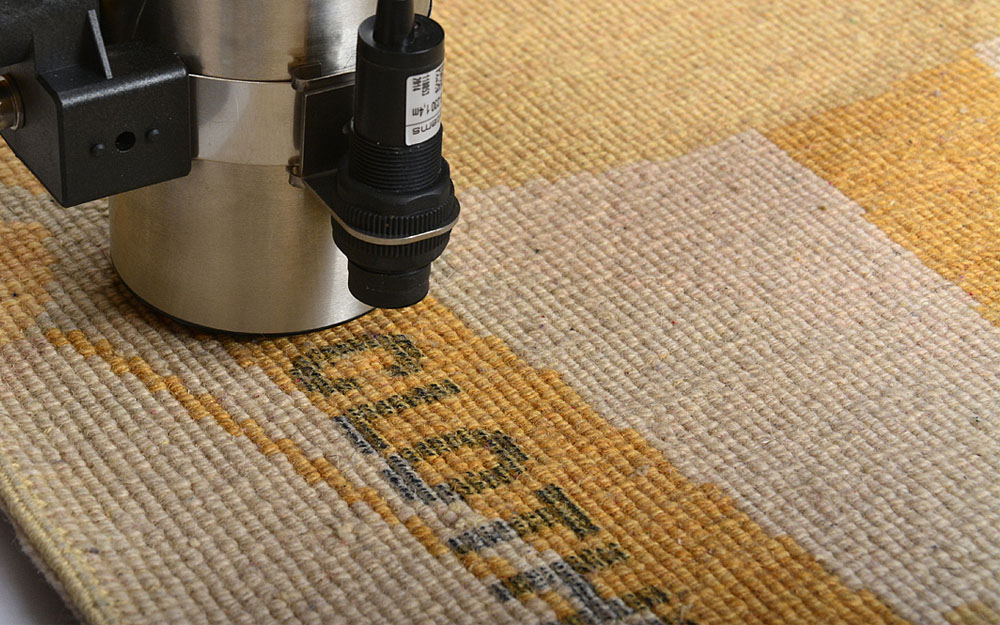

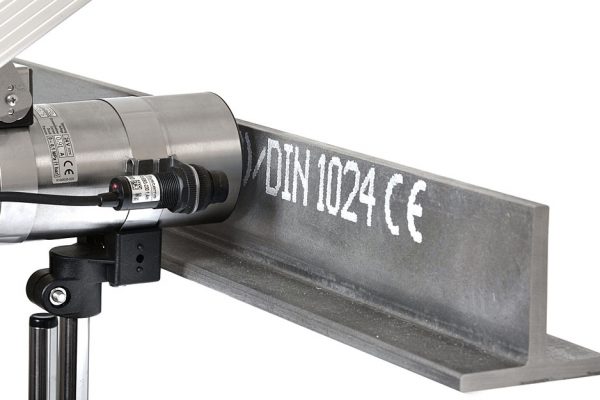

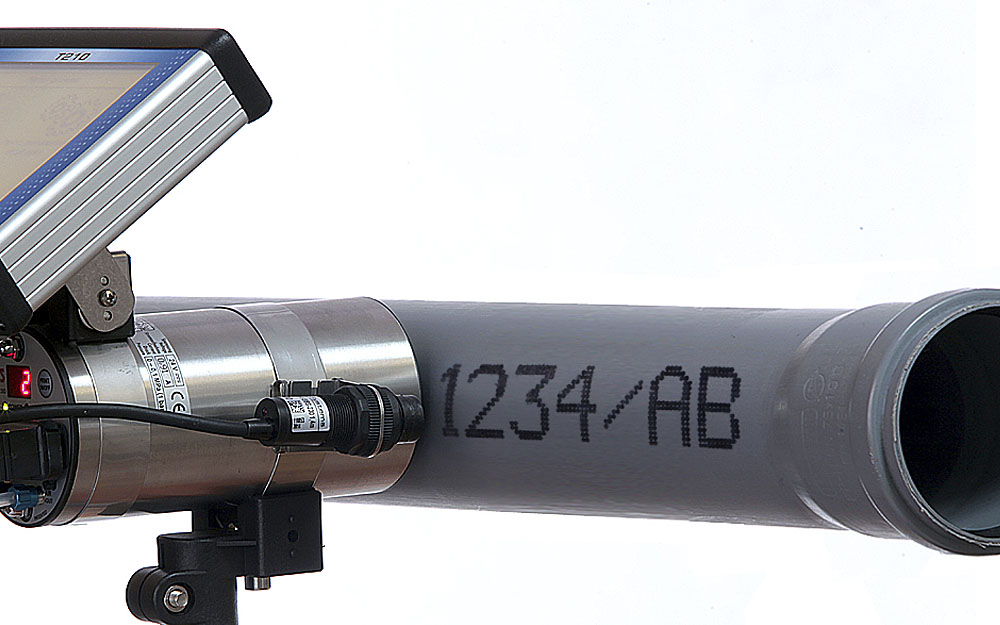

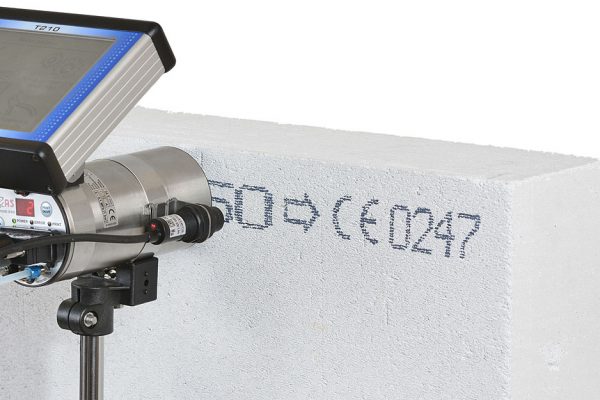

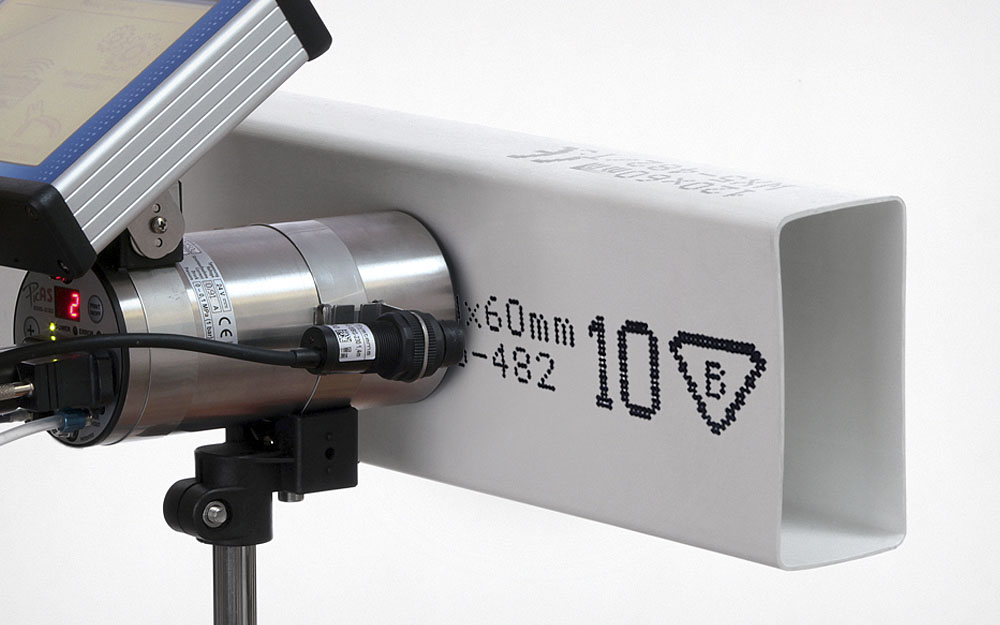

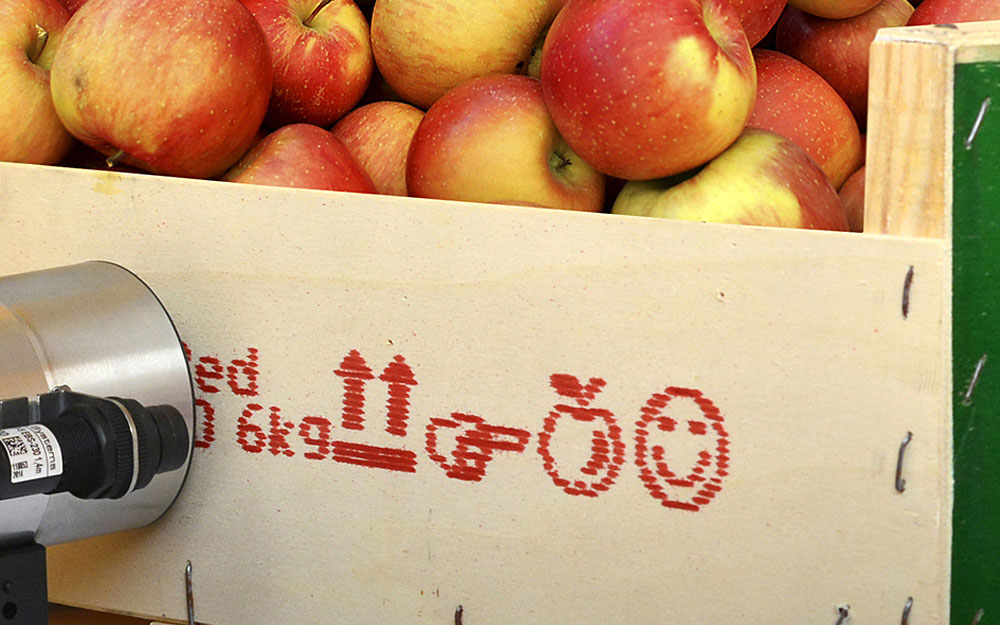

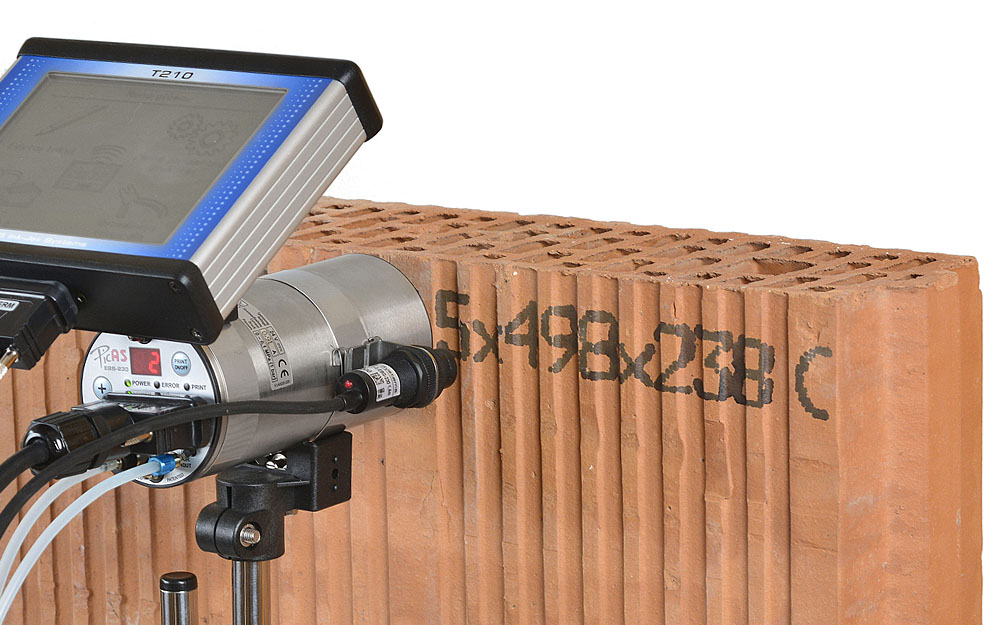

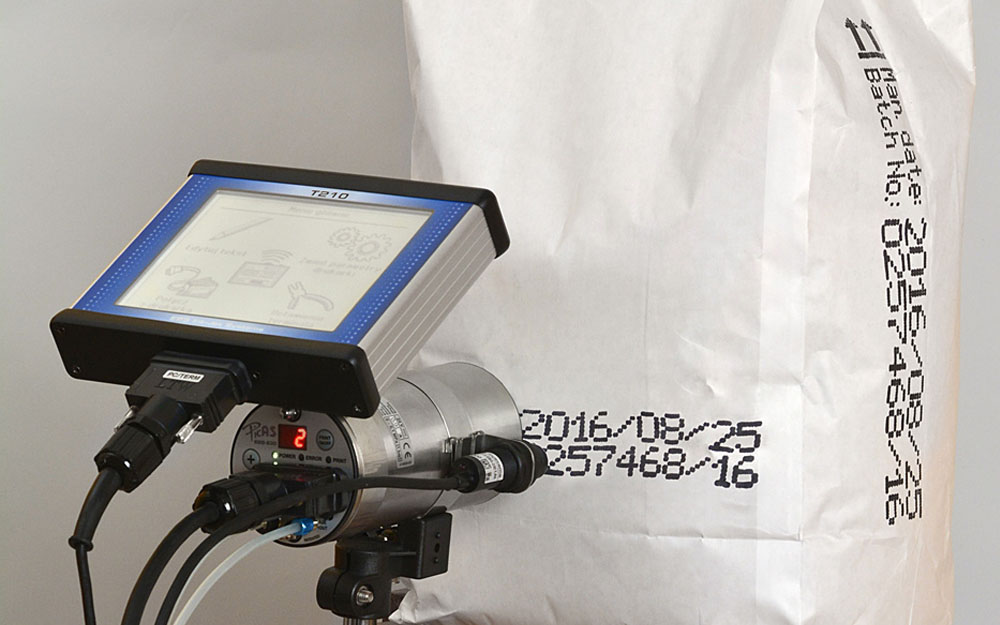

Picas EBS-30, food, packaging, logistics, construction, automotive and furniture sectors, especially in many industries; It is a portable inkjet printer designed to make large character coding on surfaces such as boxes, boxes, pallets, wood, plastic, metal and concrete. It is a professional and easy -to -use solution thanks to its ultra stainless printing head structure that can work even in challenging environments. It offers fast, wireless and practical coding solutions in the field. Thanks to its wide range of ink, it provides the opportunity to apply to various surfaces and works without the need for external air or maintenance. It is a long-lasting DOD (Drop-on-Demand) inkjet coding device with its proven performance worldwide.

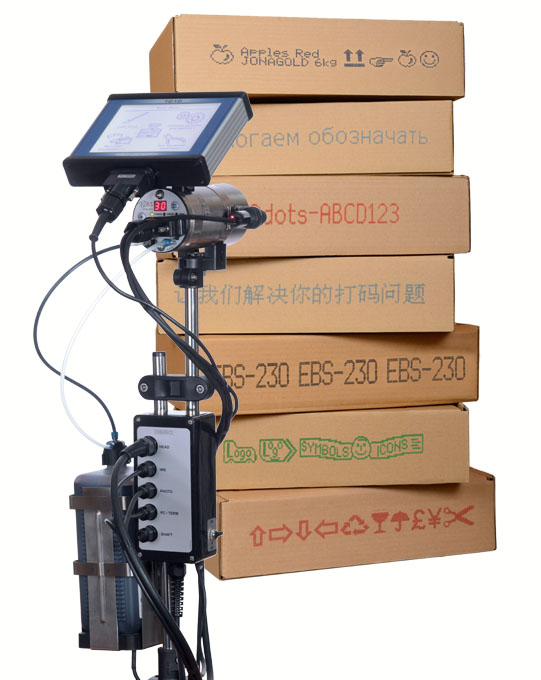

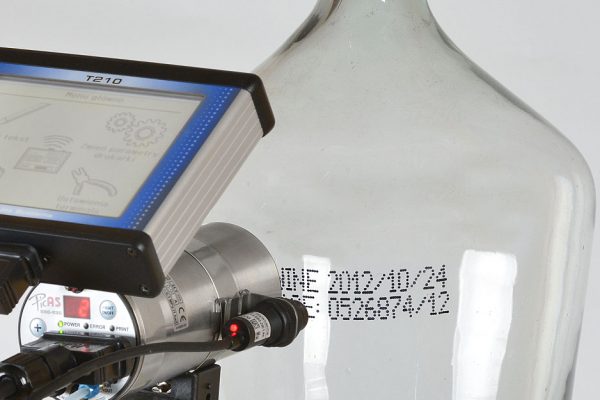

Picas EBS-30 Big Character Inkjet Coding Device
Inkjet Coding Devices
Picas EBS-30 Technical Specifications
- Printing height: 6 mm and 12 mm for 7 nozzles; 6 mm and 27 mm for 16 nozzles.
- Printing location: It can work in any location.
- Nozzle Diameter: Standard 150 microns (120, 170 and 200 micron options are available).
- Message memory: 30 posts on the device.
- Message length: Maximum 1300 characters.
- Special characters and logos: Supports special logos, signs, transport, other warning signs and Windows® characters.
- Production/expiration date, time, meter: History, time, expiration date, increasing numbers, various formats for meter.
- Writing, editing, printer control: Communication with USB cable from an IBM compatible computer; Optional T600 touch screen control.
- Print speed: 600 characters/seconds (60 point/dm resolution, 60 meters/minute speed, intensity: 50).
- Ink capacity: Alcohol, acetone and water -based inks are available in green, red, white, yellow, blue and black colors. 1000 ml ink codes 2,000,000 characters on the 5 × 7 matrix.
- Timing: Enkoder -based according to the speed of production line, time -dependent in continuous printing mode, various photocele connections, trigger with switch.
Picas EBS-30 Main Advantages
- Wireless and portable use: It offers high flexibility in the field with its easy -to -portable structure.
- User -friendly interface: Provides quick installation and ease of use.

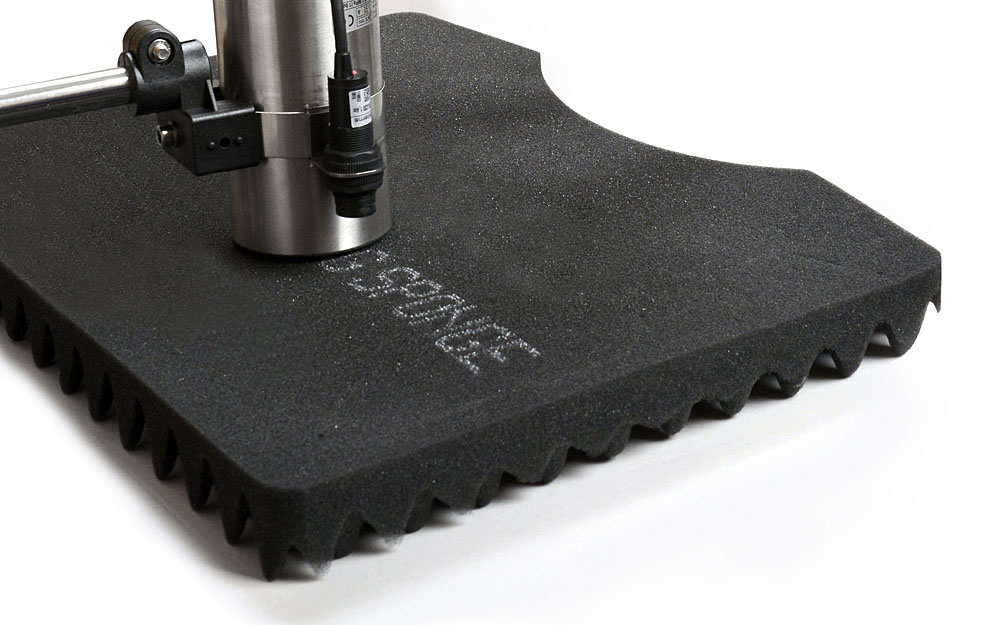

- Wide ink compatibility: Provides pressure on both absorbent and non -absorbent surfaces.
- Low maintenance needs and durable structure: Designed for long -lasting and trouble -free operation.

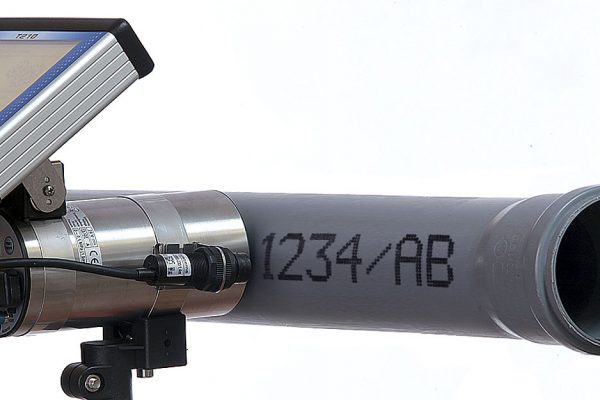

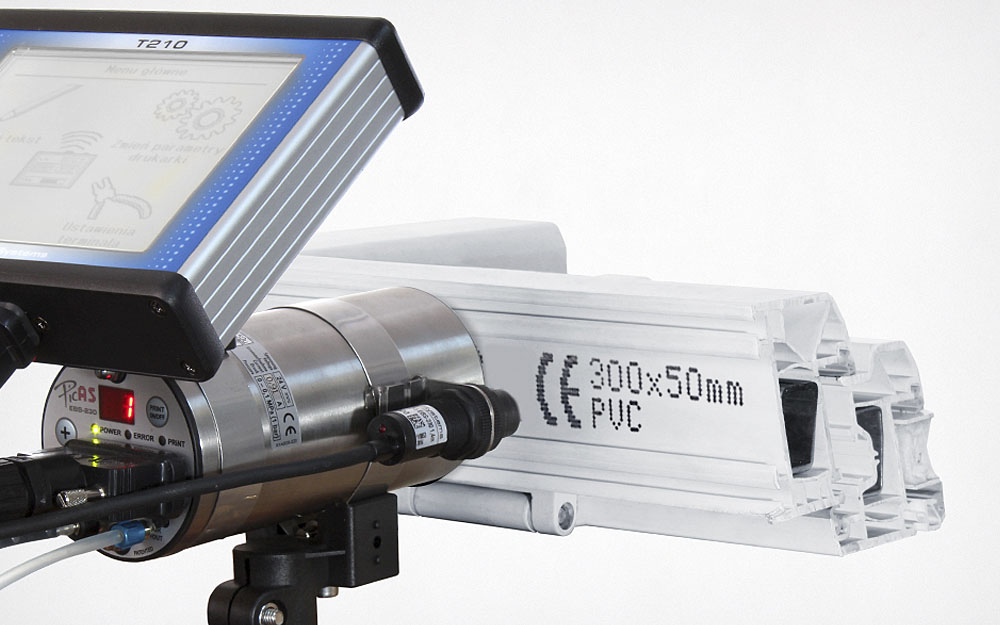

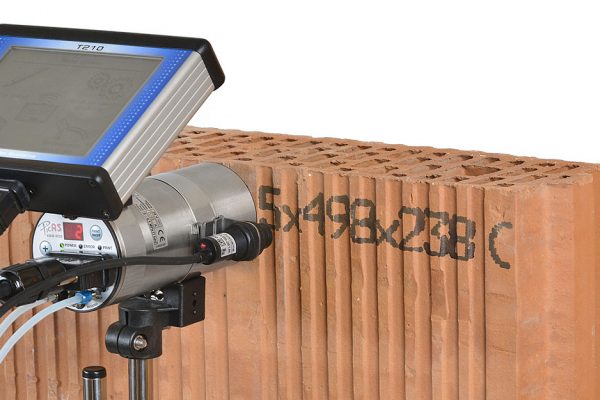

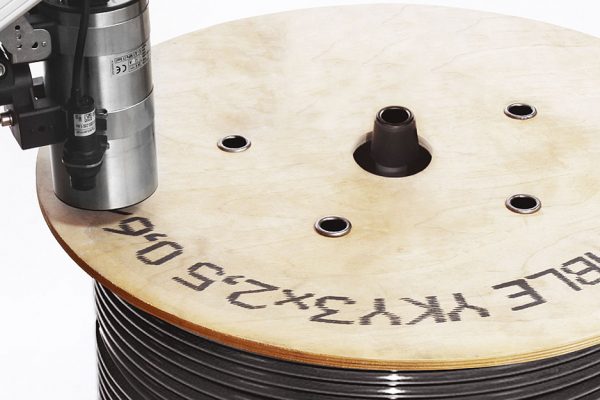

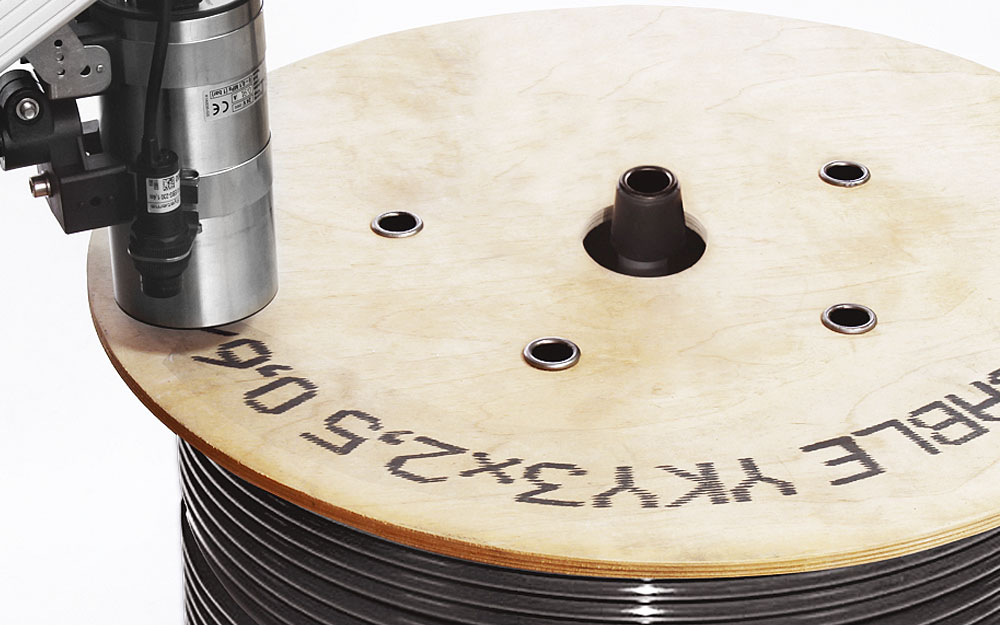

Picas EBS-30 Application Areas
- Coding on product, parcel and palette

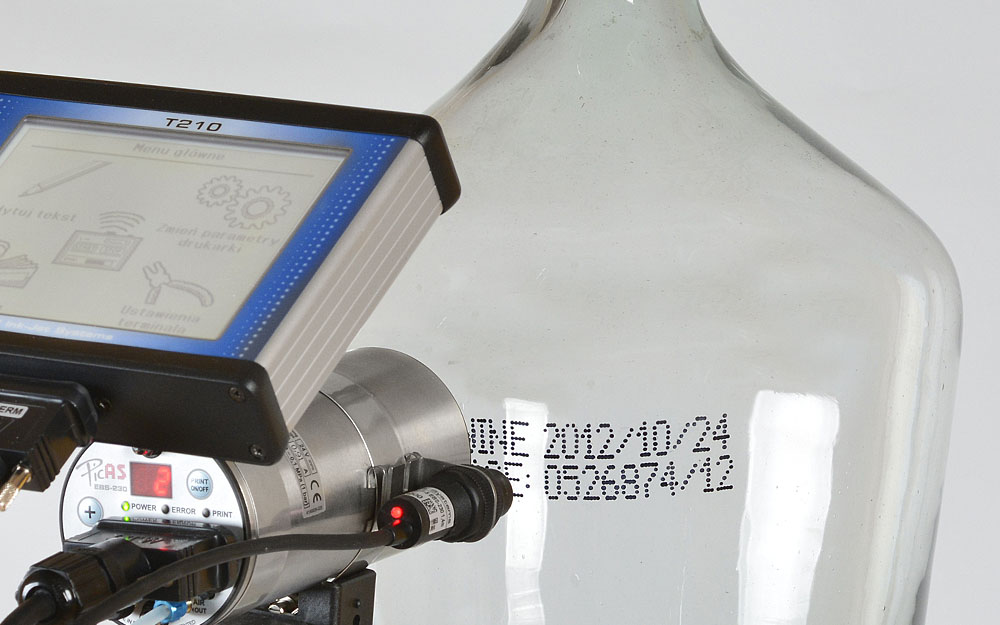

- Press the party number, date, barcode and serial number
- Storage and Logistics Marking

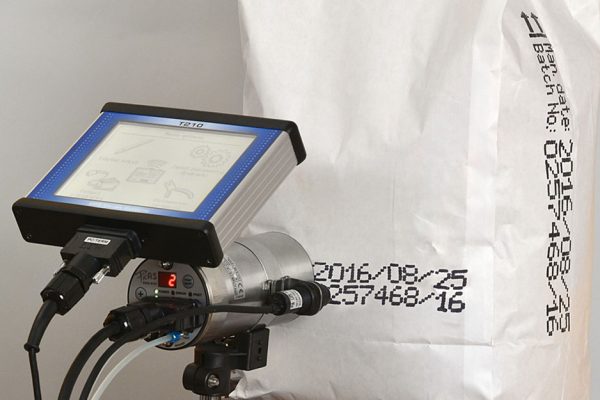

- Marking in industrial production processes
The Picas EBS-30 offers a practical and professional coding solution on your production line or field. Speed, quality and ease of use is the ideal choice for businesses looking for together.
Configurations
Technical Specifications
| Height of writing | 16 nozzle 27 mm. - 7 nozzles 12 mm |
| Printer head turned on | 7 nozzle - 12 mm. / 16 nozzle - 27 mm |
| Printer head rotating | 7 nozzle -6 mm. 12 mm. /16 nozzle -6 mm. 27 mm |
| Printer Working Position | In every position |
| Nozzle diameter | 150 microns standard, 120 microns, 170 microns, 200 micron |
| Number of lines written at once | 1 |
| Message memory | 30 pieces on the device |
| Message length | Maximum 1300 characters |
| Special Characters and Logos | Special logos, signs, transportation, other and warning signs, Windows® characters |
| Production / expiration time, date, counter | History, time, expiration date, increasing, decreasing numbers in different formats |
| Writing, editing, printer control | Communication / Optional T600 touch control via USB cable from IBM -compatible computer |
| Writing speed | 600 characters/seconds (60 DOT/DM resolution, 60 meters/minute speed, density: 50) |
| Ink capacity | Ink can be green, red, white, yellow, blue, black, including alcohol, acetone and water based. 1000 ml. 2,000,000 characters are encoded at 5 × 7 matrix with ink |
| Timing | ENCODER with the speed of production line, in continuous spelling mode, all kinds of photocell connection, with the switch should trigger |
